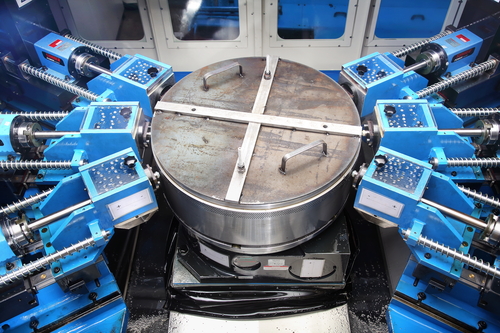

Four Spindle Gun Drill Machine

Four Spindle Gun Drill Machine
Four Spindle Gun Drill Machine
Product Code : 018
Brand Name : Swaraj Automation
Product Description

"Swaraj Automation" are listed amongst the renowned manufacturers of superior quality range of Pallet Die Manufacturing Machine. We have three different types of machines for Pellet Die manufacturing. Gun Drilling, Countering from inside and drilling for making relief on OD.

Specifications for Gun drilling -

  • Job Sizes 400 - 1200 diameters, 300 mm height
  • Hole sizes - 2.0 mm to 12 mm diameters X 110mm deep
  • Spindles - 2/4/6/8 Placed around the job
  • CNC Rotary Table for Job rotation
  • No. of Axis 4 to 10 numbers. Max. Eight simultaneous
  • Coolant Equipment - 120 bar Pressure with Cooling, Filtration system.
